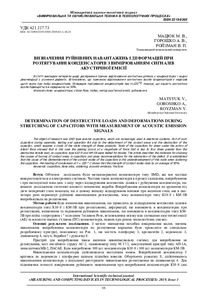

Визначення руйнівних навантажень і деформацій при розтягуванні конденсаторів з вимірюванням сигналів акустичної емісії
Вантажиться...
Файли
Дата
2019
Автори
Мацюк, М.В.
Горошко, А.В.
Ройзман, В.П.
Matsyuk, V.
Goroshko, A.
Royzman, V.
Назва журналу
Номер ISSN
Назва тому
Видавець
Хмельницький національний університет
Анотація
В статті викладені матеріали щодо дослідження причин відслоювання контактних ділянок у конденсаторах і надані рекомендації з усунення дефекта. Встановлено, що причиною відслоювання контактних вузлів конденсаторів є недогрів цього вузла при пайці конденсаторів. Попереднє прогрівання конденсаторів при t=220
показує, що міцність контактних вузлів підвищується в середньому на 50%.
The object of research was SMD type ceramic capacitors, which are increasingly used in electronic systems. Part of such capacitors during assembly, testing and operation fail due to the detachment of the contact areas and the destruction of the capacitor, which requires a study of the static strength of these products. Tests of the capacitors for shear under the action of lateral force showed that in this case the peeling occurs at a magnitude of force that is two to four times greater than the destructive tensile load, so capacitors type K10-9 and KM-5B were tested for tensile. The article describes the materials for studying the causes of burring of contact areas in capacitors and gives recommendations for the elimination of the defect. It is established that the cause of the dismemberment of the contact nodes of the capacitors is the underdevelopment of this node when soldering the capacitors. Pre-heating of condensers at t = 220 ° C shows that the strength of contact nodes rises by an average of 50%.
The object of research was SMD type ceramic capacitors, which are increasingly used in electronic systems. Part of such capacitors during assembly, testing and operation fail due to the detachment of the contact areas and the destruction of the capacitor, which requires a study of the static strength of these products. Tests of the capacitors for shear under the action of lateral force showed that in this case the peeling occurs at a magnitude of force that is two to four times greater than the destructive tensile load, so capacitors type K10-9 and KM-5B were tested for tensile. The article describes the materials for studying the causes of burring of contact areas in capacitors and gives recommendations for the elimination of the defect. It is established that the cause of the dismemberment of the contact nodes of the capacitors is the underdevelopment of this node when soldering the capacitors. Pre-heating of condensers at t = 220 ° C shows that the strength of contact nodes rises by an average of 50%.
Опис
Ключові слова
конденсатори, сплав Розе, пайка, метод акустичної емісії, руйнування, capacitors, Rose alloy, soldering, acoustic emission, fracture
Бібліографічний опис
Мацюк М. В. Визначення руйнівних навантажень і деформацій при розтягуванні конденсаторів з вимірюванням сигналів акустичної емісії [Текст] / М. В. Мацюк, А. В. Горошко, В. П. Ройзман // Вимірювальна та обчислювальна техніка в технологічних процесах. – 2019. – № 1. – С. 16-21.
